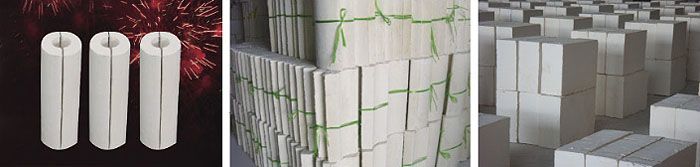

650C Millipore calcium silicate insulation board
650C Millipore calcium silicate insulation board
The main constituents of calcium silicate insulation board is Tobermorite and reinforced paper fibre,no asbestos．It is a kind of high efficient energy—saving material with temperature limited 650 cent-degree．Characterised by low bulk density,high specific strength．superior heat resistance，outstanding thermal insulation,excellent durability,chemical corrosion resistance，easy to be cut by saw and easy installation，calcium silicate can be widely used for the insulation of industrial kiln.
Specification and technical data
Our standard
GB/T10699-1998 TYPE-1
Refernce standard
American standard：-ASTM C533-07
Japan standard：-JIS A9510-1995 NO.1-22
Chemical analysis：
SiO2………………… 37-42%
CaO ………………… 29-34%
Al2O3 ……………… 10-12%
MgO………………… 1.8--2.1%
Fe2O3 ……………… 3--4%
Na2-K2O …………… 0.9--0.12%
Lgnition loss(mainly H2O)…… 12--17%
Physical property：
Physical index | Item no | YD-230 | YD-250 |
Physical index | kg/m3 | 230(±10%) | 250(±10%) |
Bulk density Tolerance | Mpa | ≥0.50 | ≥0.60 |
Flexural Strength | Mpa | ≥0.30 | ≥0.45 |
Thermal Conductive | w/m.k | 0.060 | 0.062 |
Tem limit | ℃ | 650 | 650 |
Linear Shrinkage | % | ≤2 | ≤2 |
BLOCK SIZE AND DIMENSIONAL TOLERANCES:
Name | length（mm） | width（mm） | thickness（mm） | inside diameter（ID） |
Slab | 100-600 | 100-300 | 30-100 | -- |
Pipe | 100-600 | 100-300 | 30-100 | According to client request |
Tolerances on dimensions:length+2MM;width+2MM+1.5MM,thickness.
